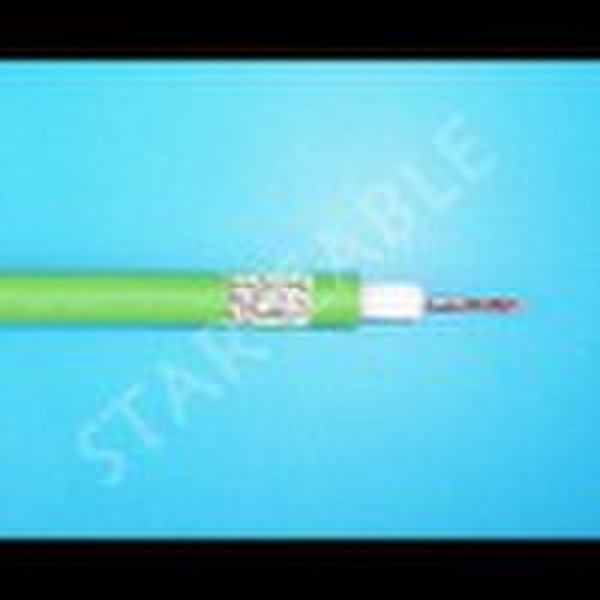

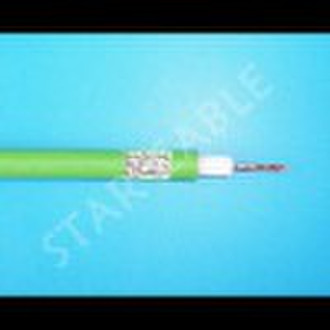

Digital Video wire
Wayne Shan
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Model Number | VCB100 |
Application: used for digital and analogical video transmission with fixed installation for broadcast and television signals over long distance.. Good protection against electromagnetic interferencesCenter Conductor: Stranded Bare Copper Nominal Diameter 7 x 0.40 mm 26 AWG Dielectric: Foam Polyethylene Nominal Diameter: 5.0mm / 0.197Shield: 1st Shield Al/ PES /Al Foil 100% Coverage 2nd Shield: Tinned copper Braid 74% coverageJacket: Green PVC / LSZH Compound Nominal Diameter of Cable: 6.95mm / 0.274Electrical Properties Impedance: 75 Ω +/- 3 Capacitance: 54pF +/- 2 Velocity of Propagation: 80% Conductor Resistance: Inner 21 Ω/km outer 12 Ω/km Attenuation: @ 20oC / 68 oF @ Frequencies MHz dB/100m dB/100ft 5 1.6 0.5 10 2.3 0.7 100 6.5 2 1000 23 7 3000 40.5 12.3
Delivery terms and packaging
Packaging Detail: FOLLOW CUSTOMER REQUEST (CARTON, SPOOL, PALLET) Delivery Detail: 25 DAYS AFTER CONFIRMATION
